Monitor Audio Bronze FX

Name: Sounds With Vision
Address: Wiveliscombe, Somerset, TA4 2AE, GB
Telephone: 01823 765035

Surround Sound Speakers

POA

Colours:

Black
White

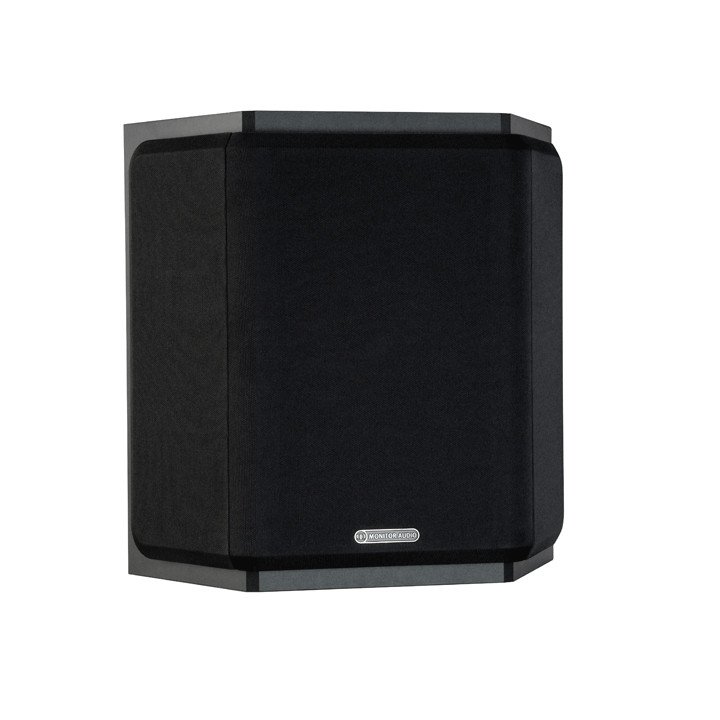

Monitor Audio Bronze FX Black Front Angle

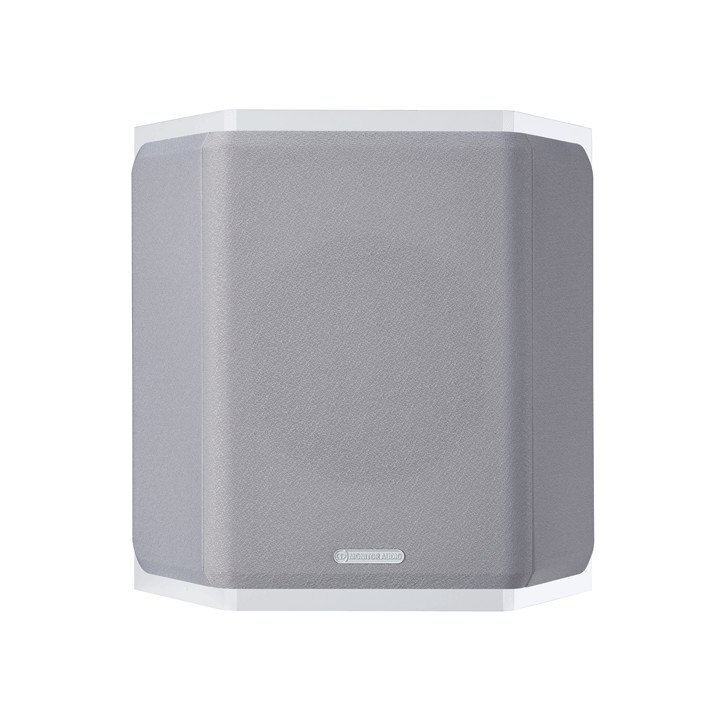

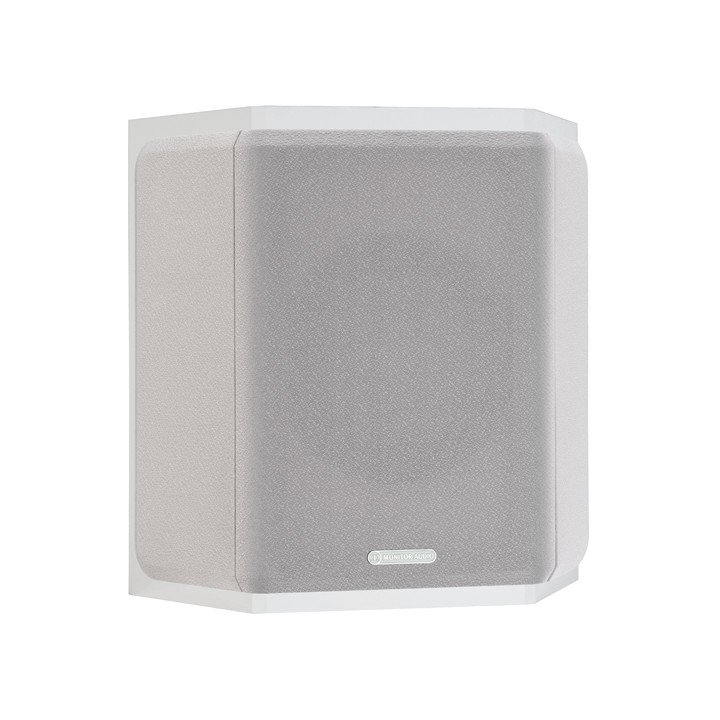

Monitor Audio Bronze FX White Front Angle

The Bronze FX has a beautiful new form and has been designed to immerse you in compelling surround sound. Monitor Audio renowned driver technology ensures an unforgettable home cinema performance.

Nothing enhances the home cinema experience like a dedicated surround sound speaker. The compact, discreet design of the Bronze FX incorporates two 25 mm C-CAM Gold Dome tweeters with UD Waveguide and a 5 1/2" C-CAM mid-bass driver to deliver the Monitor Audio sonic magic.

Monitor Audio are masters of effects speaker design and the new Bronze FX delivers our renowned surround sound experience to maximum effect.

Key Features
- Monitor Audio signature C-CAM Gold Dome Tweeter upgraded with the new Uniform Dispersion (UD) Waveguide for an incredibly lifelike sound
- C-CAM mid-bass driver featuring updated cone geometries and Damped Concentric Mode (DCM) technology which allows the speaker to have a deeper, fuller sound while retaining a clean and precise presentation
- Designed for performance – intricately optimised listening experience for music and movies
- Acoustically transparent hexagonal dispersion pattern grille also featured on our award-winning Silver and Gold Series, for the Monitor Audio family look
- High-quality gold-plated terminals
- Pureflow silver-plated oxygen-free copper internal cabling for highest quality current transfer through the signal chain
- Audio transparent bespoke cloth covered grilles for a more discreet appearance
- Angled baffles for optimal dispersion

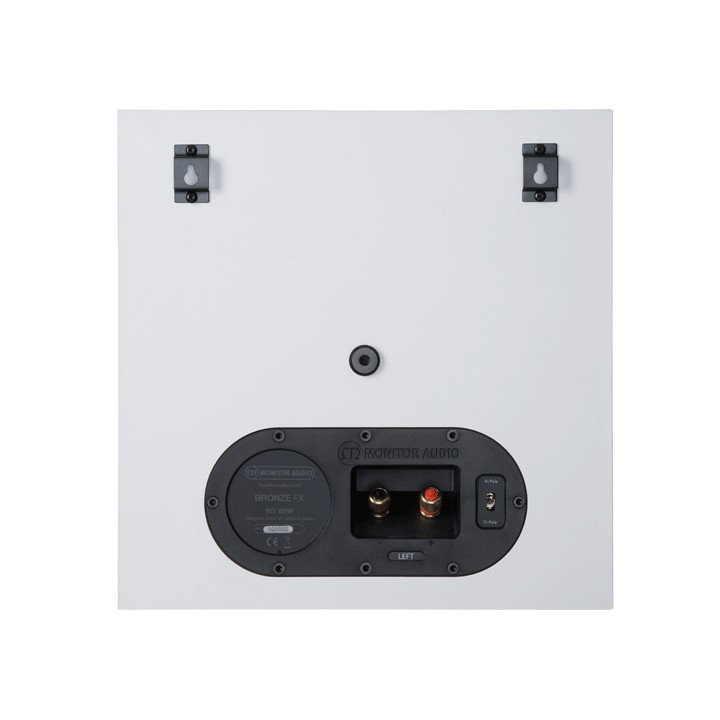

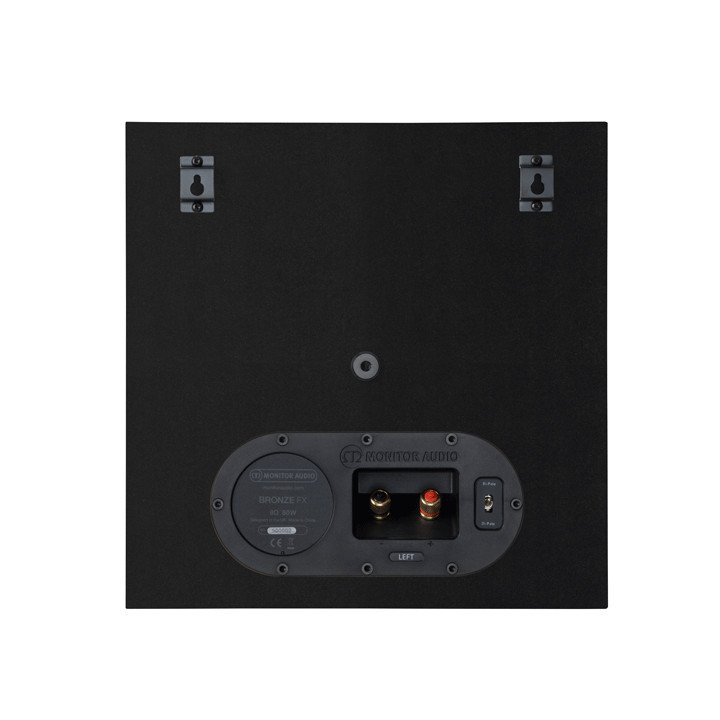

- Discreet design with flush wall placements – recessed terminations
- Dedicated keyhole wall-mounts included for easy installation
- Switchable di-pole/ bi-pole configuration – for use when needing to change the phasing for AV systems – handed pairs
- Sealed cabinet for accurate performance when installed in restricted voids or close to a wall
System Format
2-Way

Frequency Response (-6 dB)
88 – 25,000 Hz (Free field)
74 – 30,000 Hz (In room)

Sensitivity (2.83v @ 1m)
86 dB

Nominal Impedance
8 ohms

Minimum Impedance
4 ohms

Maximum SPL
108 dBA (pair)

Power Handling (RMS)
80 W

Recommended Amplifier Requirements
20 — 80 W

Bass Alignment
Sealed Cabinet

Crossover Frequency
2,800 Hz

Drive Unit Complement
1 x 51/2" C-CAM mid-range driver
2 x 25 mm C-CAM Gold Dome tweeter with UD Waveguide

External Dimensions (Including Grille and Terminals (H x W x D))
287 x 284 x 124 mm (115/16 x 113/16 x 47/8")

External Dimensions (including Outrigger Feet and Spikes (H x W x D))
N/A

Weight (each)
3.9 kg (8 lb 10 oz)

Sold As
Pair
MONITOR AUDIO

Monitor Audio is a British owned and managed global specialist in hi-fi loudspeaker design. For over forty years Monitor Audio have been creating stereo and surround sound systems and a range of sonically matched architectural speakers for ultra discreet high quality sound around the home, outside and in commercial installations.
